Wide power range: 40W~360W.
Special circuit design, single LED's damage won't affect others' normal work.
High output lumen efficiency, up to 170lm/W.
Die cast aluminum housing.

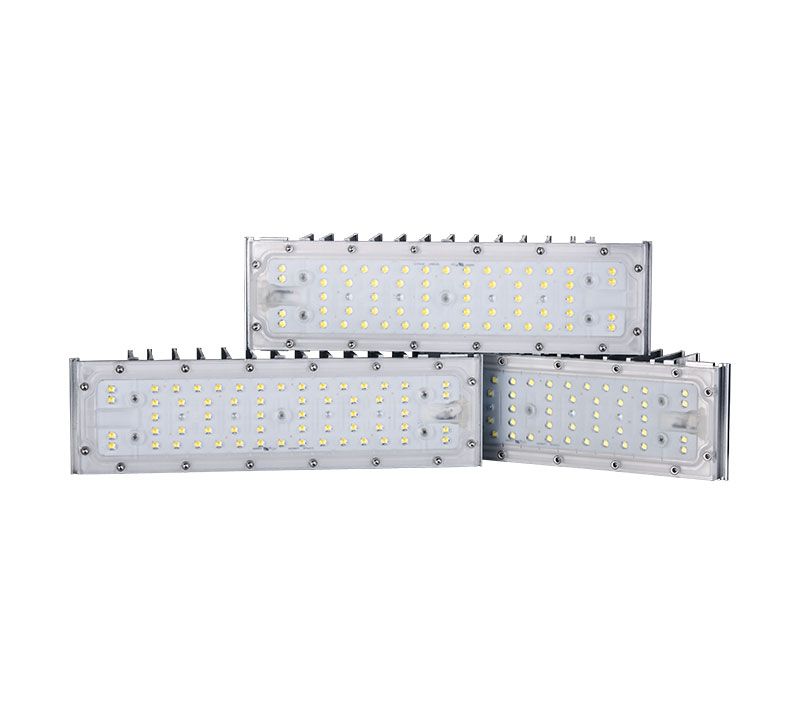

Modular design allows for easy installation, replacement and maintenance. This design also creates a chimney effect which provides exceptional thermal management.
Corrosion resistant polyester powder painted 100µm thickness.
Over 10 optical lenses are available for virtually any application.
Modular design for easy installation, replacement and maintenance.
Variety applications with different mounting Accessories.
Multiple lighting control options are available, e.g. DALI, 1-10V, Motion sensor.
Designed to last at least 100,000 hours at L70
UL/ DLC/ SAA/ CB/ CE/ RoHS/ IK10 /IP66 /LM79
7 years limited warranty available.
Stadium, Buildings, advertising, parking lots, sports field
|LED Brand||Lumileds LUXEON 3030/5050|
|Driver Brand||Meanwell /Inventronics|
|LED Module Quantity||6 modules|
|Lamp Rated Luminous Efficiency||135-165 lm/w|
|Lamp Rated Lumen output||40500-49500 lm (Lumen tolerance +/- 5%)|
|Color Rendering Index||70 (80 is optional)|
|Color Temperature||3000K, 4000K, 5000K or 5700K|
|Photometric Type||60, 90, 110 degrees|
|Optimal Operating Temperature||25℃|
|Working Environment||Between-40°C~+50°C, 10%~90%RH|
|Total Harmonic Distortion||< 10%|
|Lumen Maintenance||> 100,000 hours -L70, @25 ºC (77 ºF)|
|Body||Die-cast aluminum Housing|
|Protection||Class I ( Class II optional)|
|Certification||CE, ROHS, LM80|
|Dimming Options||1-10V or DALI or PWM or Timer|
|Control Options||Motion sensor or Smart control|
|Fixture Dimension||658 x340 x156 mm|
|Fixture Weight||7.8 kg /17.2 lbs|
|Packing Dimension||705 x365 x160 mm|
|Packing Weight||9.0 kg /19.8 lbs|
